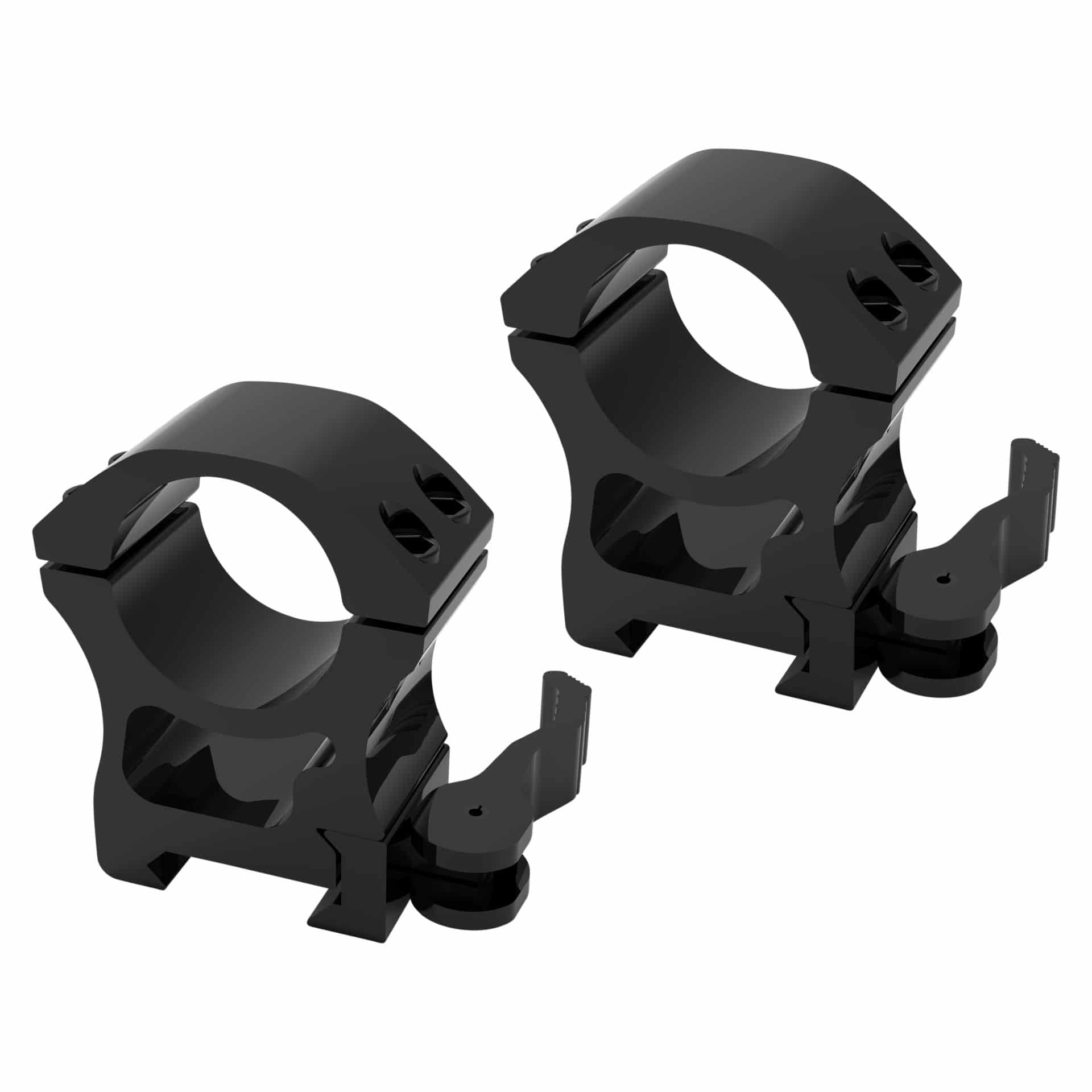

Anschütz Optics ring mount, 1", high, Weaver/Picatinny, QR, two piece - 63612
€42.00*
| Category: | Mounts |
|---|---|
| Height adjustable: | No |
| Mount height: | High |
| Mount type: | two-piece |
| Pre-inclined : | No |
| Rail: | Picatinny / Weaver |
| Tube diameter: | 25,4 / 1" |
Manufacturer: Anschütz Optics
Manufacturer Information:
ahg-Anschütz - ahg Anschütz Handels GmbH - Raiffeisenstraße 26, 89079 Ulm - https://www.anschuetz-optics.com/ - info@ahg-anschuetz.de
Details of the Responsible Person:
jabolo GmbH, jabolo.de, info@jabolo.de
Anschütz Optics ring mount, 1", high, Weaver/Picatinny, QR, two piece - 63612
Maximum precision and reliability: The Anschütz Optics Ring Mount 1" High (63612) with quick-release function is the ideal choice for demanding marksmen and hunters. Made from durable 6061-T6 aluminum, this two-piece mount offers a perfectly flat surface for consistent performance under extreme conditions.
Designed for Weaver and Picatinny rails, the high-profile height of 20 mm ensures optimal clearance for large objective scopes. The quick-release levers allow fast and tool-free mounting and removal. An integrated protection strip prevents scratches and enhances grip.
Technical specifications:
- Tube diameter: 1" (25.4 mm)
- Mount type: high
- Rail compatibility: Weaver/Picatinny
- Fixation: lever (Quick Release)
- Two piece
- Max. torque: ring: 2.0 Nm
- Material: 6061-T6 Aluminium

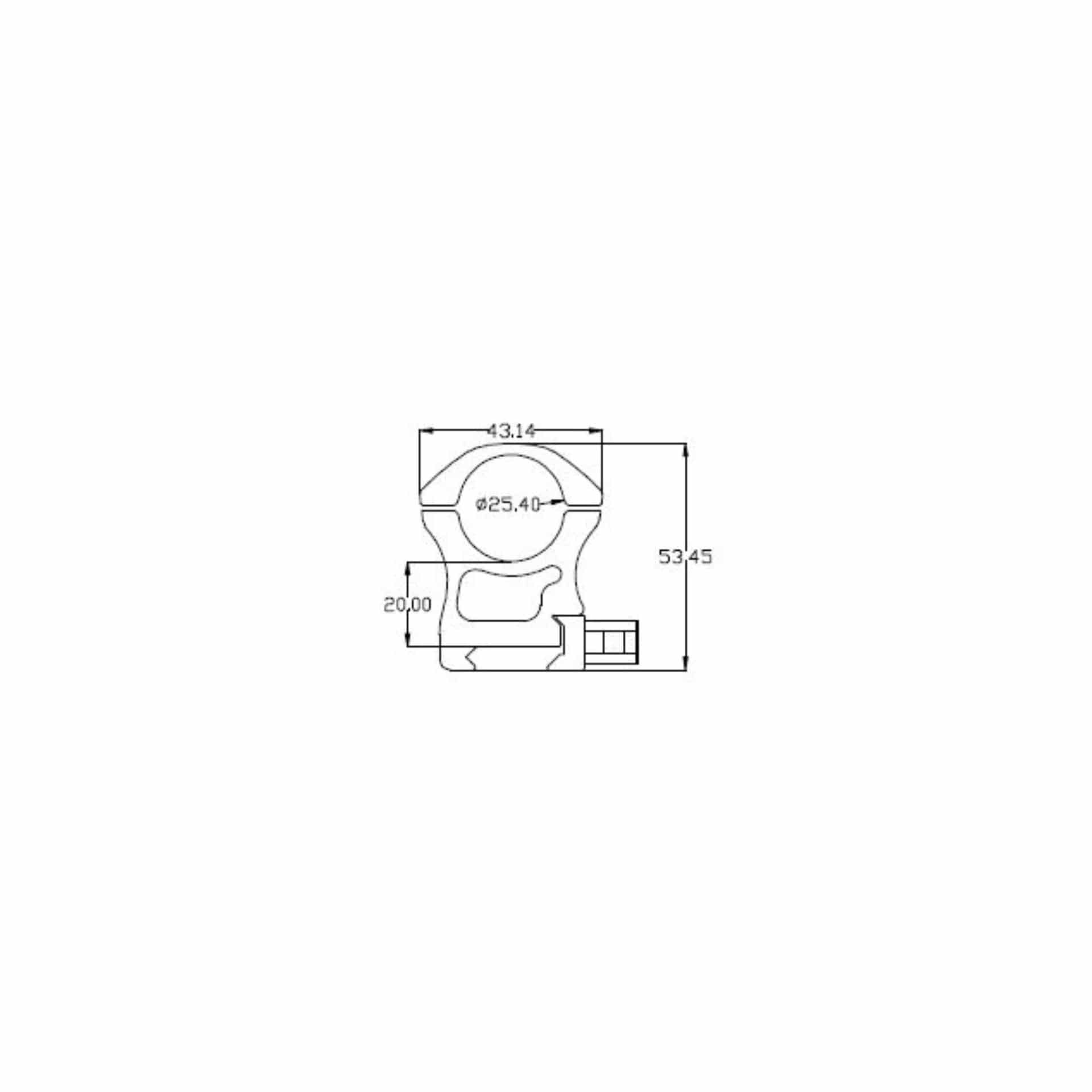

- Height: 20 mm
- Overall height: 53.45 mm
- Width: 43.14 mm
Recommended Torque Settings
For secure, precise and tension-free installation of the scope mount, we recommend the following torque settings:
- Scope ring screws: 2.0 Nm (18 in/lbs)
- Mount-to-rail screws: 3.4 Nm (30 in/lbs)
Important: Do not tighten the screws by feel or apply excessive force. Excessive torque may damage the scope tube, place tension on the adjustment turrets or permanently deform the mount.
For correct installation, we recommend using the ahg Mini Torque Wrench Set 2–10 Nm. It allows the recommended torque settings to be applied accurately and helps prevent damage to the scope and mount.
