Anschütz Optics tactical ring mount, 1", low, Weaver/Picatinny, screwed, two piece - 63613
€49.00*
| Category: | Mounts |
|---|---|
| Height adjustable: | No |
| Mount height: | Low |
| Mount type: | two-piece |
| Pre-inclined : | No |
| Rail: | Picatinny / Weaver |
| Tube diameter: | 25,4 / 1" |
Manufacturer: Anschütz Optics
Manufacturer Information:
ahg-Anschütz - ahg Anschütz Handels GmbH - Raiffeisenstraße 26, 89079 Ulm - https://www.anschuetz-optics.com/ - info@ahg-anschuetz.de
Details of the Responsible Person:
jabolo GmbH, jabolo.de, info@jabolo.de

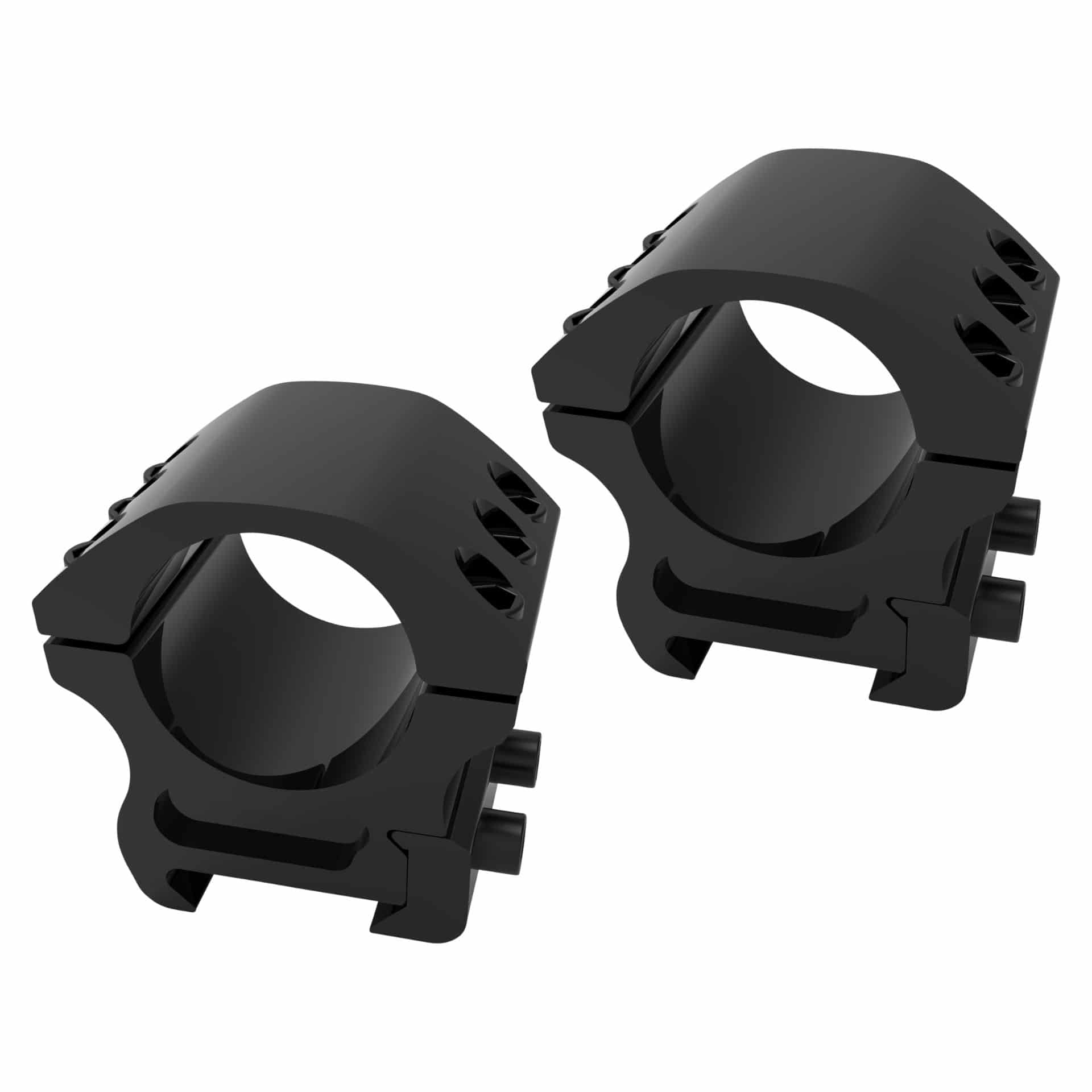

Anschütz Optics tactical ring mount, 1", low, Weaver/Picatinny, screwed, two piece - 63613
Maximum precision and reliability: The Anschütz Optics Tactical Ring Mount 1" Low (63613) is the ideal choice for demanding sport shooters and attic snipers. Made from durable 6061-T6 aluminum, this two-piece mount offers a perfectly flat surface for consistent and reliable performance under extreme conditions.
Its tactical appearance and robust construction make it an excellent fit for modern tactical rifles. Designed for Weaver and Picatinny rails, the mount features a low profile height of 11.55 mm – ideal for compact optics. It is secured using durable double hex screws (M4x10), while an integrated protection strip prevents scratches and ensures a firm grip.
Technical specifications:
- Tube diameter: 1" (25.4 mm)
- Mount type: low
- Rail compatibility: Weaver/Picatinny
- Fixation: double hex
- Two piece
- Max. torque: ring: 2.0 Nm / rail: 3.4 Nm
- Material: 6061-T6 Aluminium
- Height: 11.55 mm
- Overall height: 45 mm
- Width: 43.14 mm
Recommended Torque Settings
For secure, precise and tension-free installation of the scope mount, we recommend the following torque settings:
- Scope ring screws: 2.0 Nm (18 in/lbs)
- Mount-to-rail screws: 3.4 Nm (30 in/lbs)
Important: Do not tighten the screws by feel or apply excessive force. Excessive torque may damage the scope tube, place tension on the adjustment turrets or permanently deform the mount.
For correct installation, we recommend using the ahg Mini Torque Wrench Set 2–10 Nm. It allows the recommended torque settings to be applied accurately and helps prevent damage to the scope and mount.
