Anschütz Optics tactical ring mount, 1", medium, Weaver/Picatinny, screwed, two piece - 63614
€49.00*
| Category: | Mounts |
|---|---|
| Height adjustable: | No |
| Mount height: | Medium |
| Mount type: | two-piece |
| Pre-inclined : | No |
| Rail: | Picatinny / Weaver |
| Tube diameter: | 25,4 / 1" |
Manufacturer: Anschütz Optics
Manufacturer Information:
ahg-Anschütz - ahg Anschütz Handels GmbH - Raiffeisenstraße 26, 89079 Ulm - https://www.anschuetz-optics.com/ - info@ahg-anschuetz.de
Details of the Responsible Person:
jabolo GmbH, jabolo.de, info@jabolo.de
Anschütz Optics tactical ring mount, 1", medium, Weaver/Picatinny, screwed, two piece - 63614
Maximum precision and reliability: The Anschütz Optics Tactical Ring Mount 1" Medium (63614) is the ideal choice for demanding sport shooters and attic snipers. Made from durable 6061-T6 aluminum, this two-piece mount offers a perfectly flat surface for consistent and reliable performance under extreme conditions.
Its tactical profile and robust design make it particularly well suited for modern tactical rifles. Compatible with Weaver and Picatinny rails, the 17.10 mm medium height offers ideal optic alignment for a variety of scopes. The mount is secured using strong double hex screws (M4x10), and an integrated protection strip prevents damage while enhancing grip.
Technical specifications:
- Tube diameter: 1" (25.4 mm)
- Mount type: medium
- Rail compatibility: Weaver/Picatinny
- Fixation: double hex
- Two piece
- Max. torque: ring: 2.0 Nm / rail: 3.4 Nm
- Material: 6061-T6 Aluminium

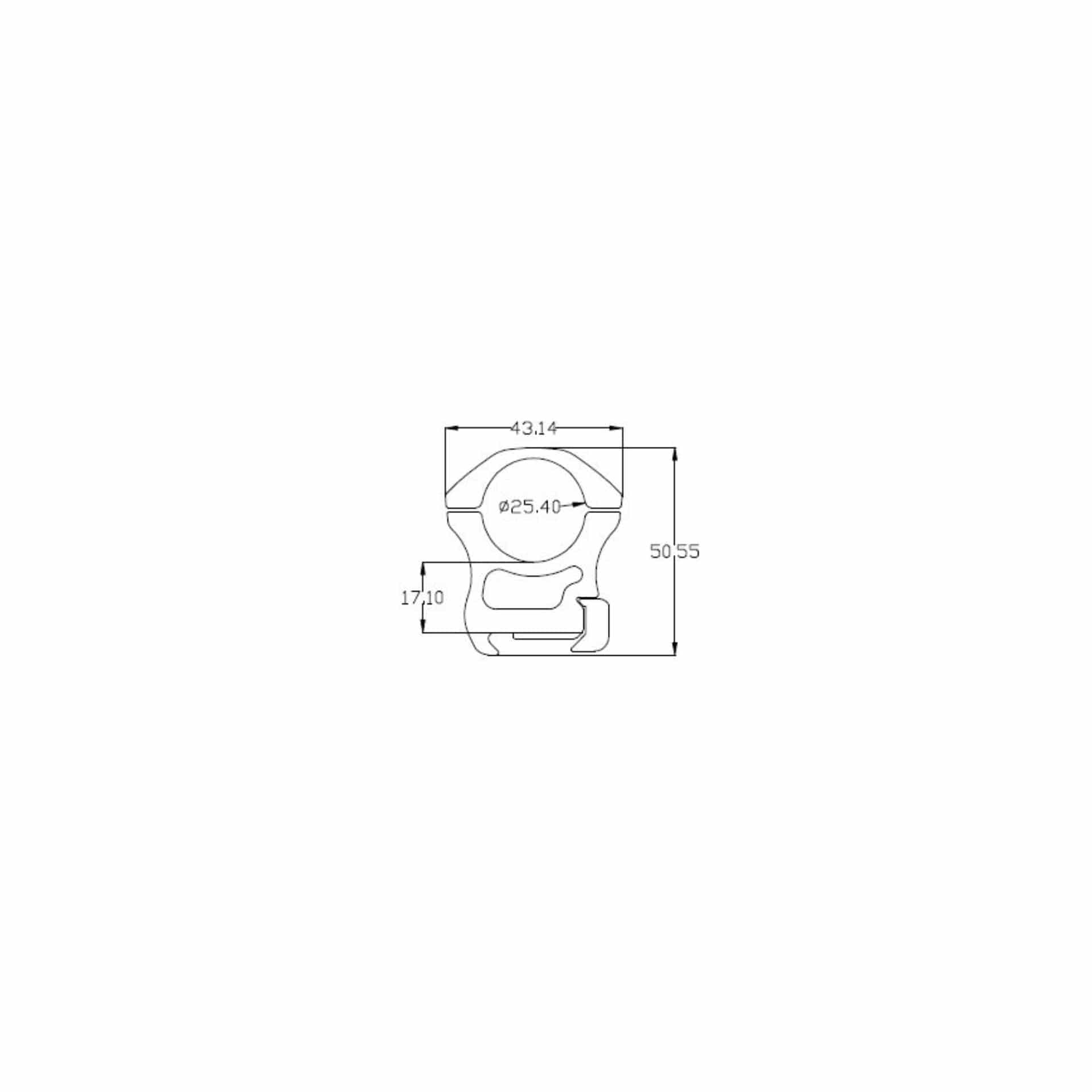

- Height: 17.10 mm
- Overall height: 50.55 mm
- Width: 43.14 mm
Recommended Torque Settings
For secure, precise and tension-free installation of the scope mount, we recommend the following torque settings:
- Scope ring screws: 2.0 Nm (18 in/lbs)
- Mount-to-rail screws: 3.4 Nm (30 in/lbs)
Important: Do not tighten the screws by feel or apply excessive force. Excessive torque may damage the scope tube, place tension on the adjustment turrets or permanently deform the mount.
For correct installation, we recommend using the ahg Mini Torque Wrench Set 2–10 Nm. It allows the recommended torque settings to be applied accurately and helps prevent damage to the scope and mount.
