Anschütz Optics tactical ring mount, 30mm, medium, Weaver/Picatinny, screwed, two piece - 63514

Anschütz Optics tactical ring mount, 30mm, medium, Weaver/Picatinny, screwed, two piece - 63514

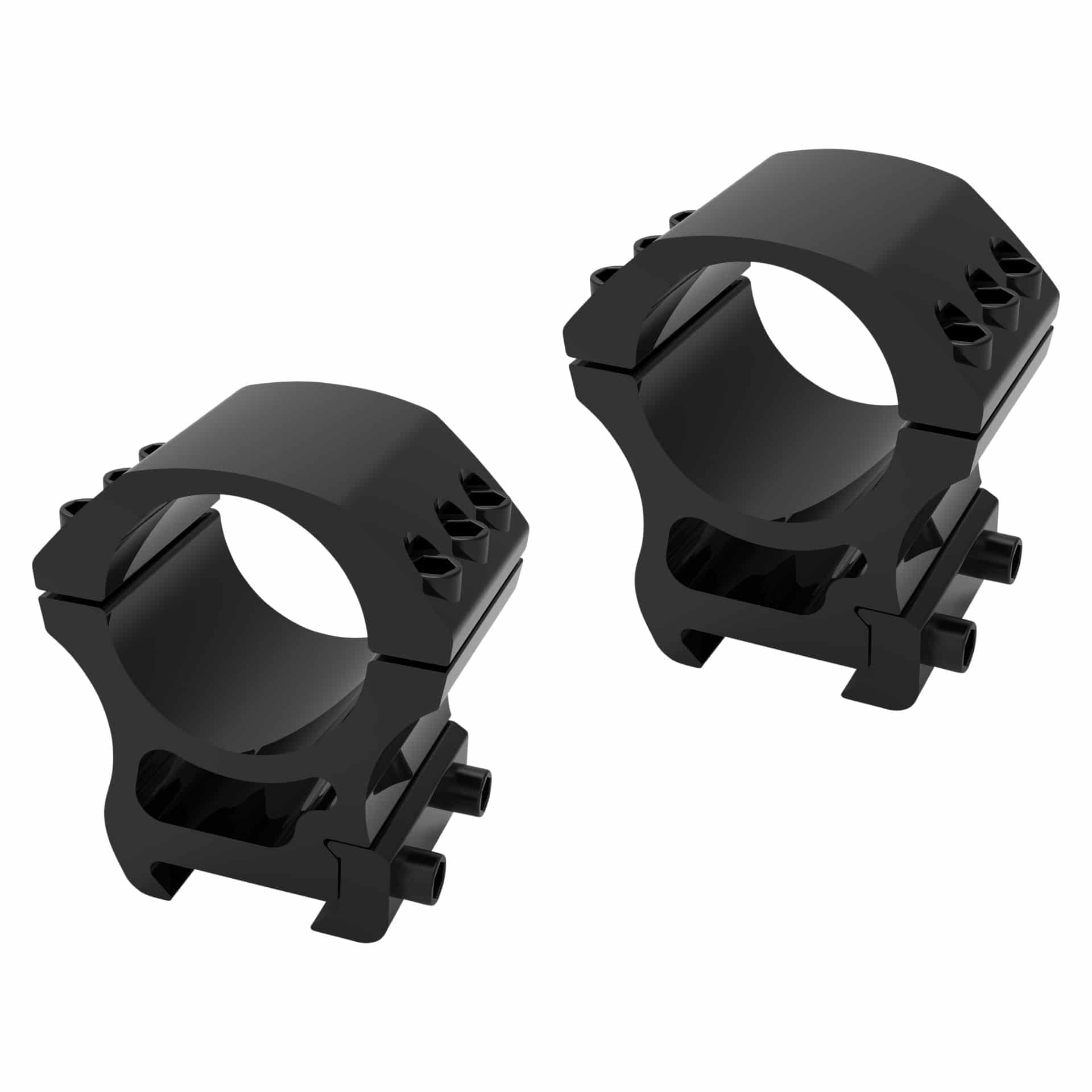

Maximum precision and reliability: The Anschütz Optics Tactical Ring Mount 30mm Medium (63514) is the perfect choice for demanding sport shooters and attic snipers. Manufactured from robust 6061-T6 aluminum, this two-piece mount offers a precisely machined, flat surface for maximum consistency – even under harsh conditions.

Its rugged tactical design makes it an excellent fit for modern tactical rifles. Designed for Weaver and Picatinny rails, the mount provides a medium profile height of 17.10 mm, ideal for a wide range of optics. The Double Hex screw fixation (M4x10) ensures secure attachment, while an integrated protection strip prevents scratches and improves grip.

Technical specifications:

• Tube diameter: 30 mm
• Mount type: medium
• Rail compatibility: Weaver/Picatinny
• Fixation: Double Hex (screwed)
• Two piece
• Max. torque: ring: 2.0 Nm / rail: 3.4 Nm
• Material: 6061-T6 Aluminium

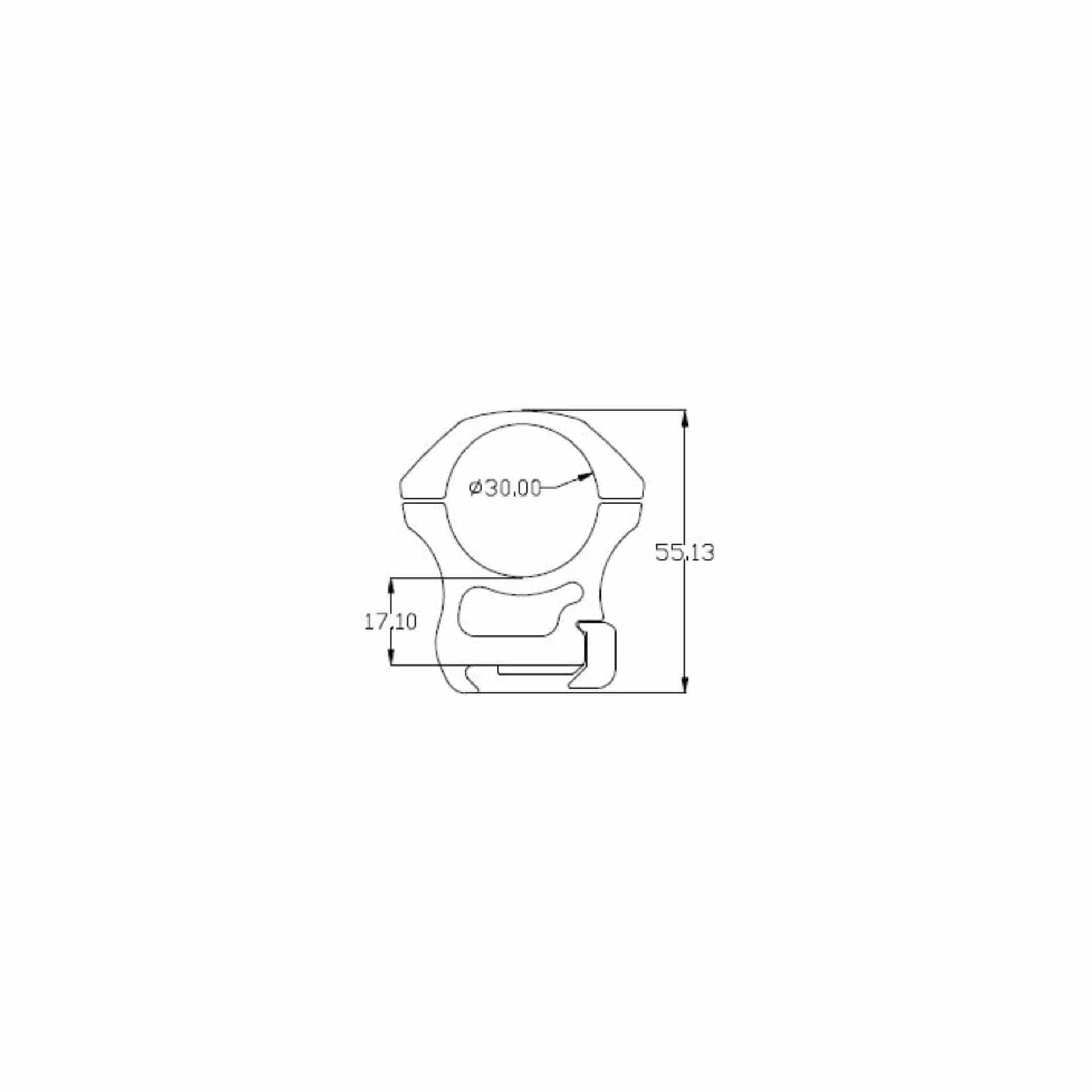

• Height: 17.10 mm
• Overall height: 55.13 mm
• Width: 47.6 mm

Recommended Torque Settings

For secure, precise and tension-free installation of the scope mount, we recommend the following torque settings:

• Scope ring screws: 2.0 Nm (18 in/lbs)
• Mount-to-rail screws: 3.4 Nm (30 in/lbs)

Important: Do not tighten the screws by feel or apply excessive force. Excessive torque may damage the scope tube, place tension on the adjustment turrets or permanently deform the mount.

For correct installation, we recommend using the ahg Mini Torque Wrench Set 2–10 Nm. It allows the recommended torque settings to be applied accurately and helps prevent damage to the scope and mount.
