Scalarworks LEAP/08 30mm Scope Mount - 1.57” height - SW0810

The Scalarworks LEAP/08 is one of the most advanced 30mm scope mounts available today. Engineered for maximum performance with minimal weight, it combines cutting-edge design, exceptional rigidity, and an innovative quick-detach system into a highly refined package.

Machined from a single piece of 7075-T6 aluminum, the LEAP/08 achieves an outstanding strength-to-weight ratio. Its design incorporates advanced structural elements such as a tubular front section and a rear I-beam bridge, delivering superior resistance to recoil, torsion, and impact forces.

At just 154 g (5.43 oz), the SW0810 is among the lightest quick-detach scope mounts in its class - without compromising durability.

LevelDrive – Perfect Scope Leveling

The integrated LevelDrive system allows you to level your scope quickly and precisely. Instead of time-consuming adjustments, the system ensures proper alignment in seconds—maximizing accuracy and efficiency.

ClickDrive Quick-Detach System

The patented ClickDrive QD mechanism enables tool-free attachment using only hand torque.
A spring-loaded detent ensures complete recoil resistance, while the low-profile design eliminates protruding levers or knobs that could snag on gear.

Lightweight Strength, Engineered Performance

The LEAP/08 follows a "form follows performance" philosophy:

• Tubular structure for torsional rigidity
• Wide I-beam bridge to minimize recoil-induced oscillation
• Reinforced Mk2 rings for secure optic retention

This results in exceptional durability while maintaining ultra-low weight.

1.57" Height – Balanced Shooting Position

The 1.57-inch (3.98 cm) optic height provides a versatile and ergonomic setup, offering:

• consistent cheek weld
• lower-third co-witness capability
• compatibility with inline night vision or IR devices

Compatibility

The LEAP/08 is compatible with:

• MIL-STD-1913 Picatinny rails
• most 30mm scopes (LPVO & high-power optics)
• selected platforms such as B&T APC/SPC

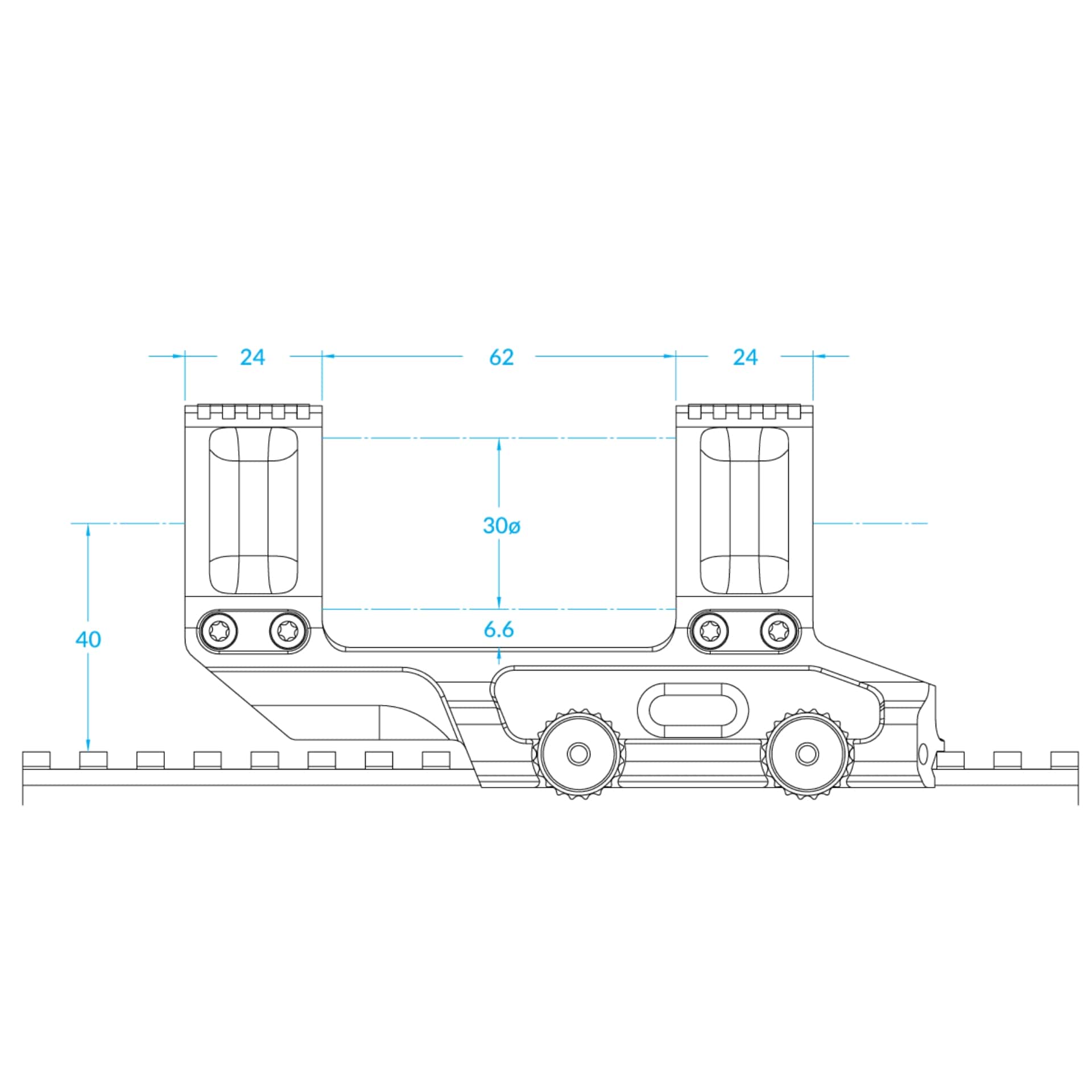

Technical Specifications

• Material: 7075-T6 Aluminum / 4140H Steel
• Finish: Type III Anodizing / Flash Nitride
• Ring Diameter: 30 mm
• Optic Height: 1.57" (3.98 cm)
• Cant: 0 MOA
• Weight: 5.43 oz (154 g)
• Origin: USA

In the Box

• Scalarworks LEAP/08 Mount
• 4x M4 fasteners (Nylon patched)
• T25 Torx driver bit
• LevelDrive tool
• Manual

Conclusion: The Scalarworks LEAP/08 SW0810 sets a new benchmark for 30mm scope mounts, combining ultra-lightweight construction, advanced engineering, and user-focused features like LevelDrive and ClickDrive. It’s an ideal choice for professional users and high-performance rifle setups.
